Hand Tools
Power Tool Accessories
Spade Bits
Spade Bits
It’s simple. Those who know the drill know the importance of speed and longevity. The NEW SPEEDBOR® Spade Bits feature chamfered cutting edges for increased durability when cutting wood. The result? More holes. Less time. That simple.TM
2X
Longer Life*
2X
Faster Cuts*
close
Why It Matters
Why It Matters

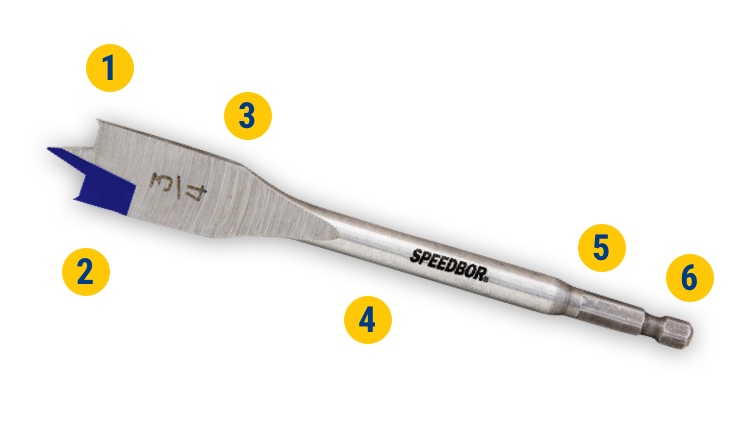

See what sets IRWIN<sup>®</sup> Spade Bits apart from the rest
CHAMFERED
CUTTING EDGES
Improved durability for longer life.*
PATENTED
BLUE-GROOVE™ DESIGN
Large cutting area for faster chip removal and holes*
REINFORCED¼” SHANK
Designed for faster speeds and aggressive cuts with Impact Drivers
OPTIMIZED POINT TIP
Helps minimize splintering and control speed
* on average vs. IRWIN SPEEDBOR®️ previous generation in 1-⅜” oak
Filter Products
SPEEDBOR UTILITY BITS
|
Diameter |
Length |
Flute Length |
Shank Size |
||
SPEEDBOR® 1/2-in Woodboring Tri-Flute Utility Bit3041001 |
1/2" |
6" |
1-3/4" |
1/4" Hex Quick Change |
|
SPEEDBOR® Max 3/4-in Woodboring Tri-Flute Utility Bit3041002 |
3/4" |
6" |
2-3/8" |
1/4" Hex Quick Change |
|
SPEEDBOR® Max 5/8-in Woodboring Tri-Flute Utility Bit3041004 |
5/8" |
6" |
2-1/16" |
1/4" Hex Quick Change |
|
SPEEDBOR® 7/8-in Woodboring Tri-Flute Utility Bit3041005 |
7/8" |
6" |
2-5/8" |
1/4" Hex Quick Change |
|
SPEEDBOR® Max 1-in Woodboring Utility Bit3041007 |
1" |
6" |
2-7/8" |
1/4" Hex Quick Change |
|
SPEEDBOR® Max 1-1/4-in Woodboring Utility Bit3041009 |
1-1/4" |
6" |
2-3/4" |
1/4" Hex Quick Change |
|
SPEEDBOR® Max 1/2-in Woodboring Utility Bit1866058 |
1/2" |
16" |
1-3/4" |
3/8" Hex |
|
SPEEDBOR® Max 5/8-in Woodboring Utility Bit1866059 |
5/8" |
16" |
2-1/16" |
3/8" Hex |
|
SPEEDBOR® Max 3/4-in Woodboring Utility Bit1866060 |
3/4" |
16" |
2-3/8" |
3/8" Hex |
SPEEDBOR SPADE BITS
|
Diameter |
Length |
Shank Size |
||
SPEEDBOR® Standard Length 1/4-in Woodboring Spade Drill Bit88804 |
1/4" |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® Standard Length 3/8-in Woodboring Spade Drill Bit88806 |
3/8" |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® Standard Length 1/2-in Woodboring Spade Drill Bit88808 |
1/2" |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® Standard Length 9/16-in Woodboring Spade Drill Bit88809 |
9/16" |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® Standard Length 5/8-in Woodboring Spade Drill Bi88810 |
5/8" |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® Standard Length 3/4-in Woodboring Spade Drill Bit88812 |
3/4" |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® Standard Length 7/8-in Woodboring Spade Drill Bit88814 |
7/8" |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® Standard Length 1-in Woodboring Spade Drill Bit88816 |
1" |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® Standard Length 1-1/8-in Woodboring Spade Drill Bit88818 |
1-1/8" |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® Standard Length 1-1/4-in Woodboring Spade Drill Bit88820 |
1-1/4" |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® Standard Length 1-3/8-in Woodboring Spade Drill Bit88822 |
1-3/8" |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® Extra Long 1/2-in Woodboring Spade Drill Bit88708 |
1/2" |
16" |
1/4" Hex |
|
SPEEDBOR® Extra Long 5/8-in Woodboring Spade Drill Bit88710 |
5/8" |
16" |
1/4" Hex |
|
SPEEDBOR® Extra Long 3/4-in Woodboring Spade Drill Bit88712 |
3/4" |
16" |
1/4" Hex |
|
SPEEDBOR® Extra Long 1-in Woodboring Spade Drill Bit88716 |
1" |
16" |
1/4" Hex |
|
SPEEDBOR® Extra Long 3/8-in Woodboring Spade Drill Bit88706 |
3/8" |
16" |
1/4" Hex |
|
SPEEDBOR® Standard Length 11/16-in Woodboring Spade Drill Bit88811 |
11/16" |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® Standard Length 13/16-in Woodboring Spade Drill Bit88813 |
13/16" |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® Standard Length 1-1/2-in Woodboring Spade Drill Bit88824 |
1-1/2" |
6" |
1/4" Hex Quick Change |
SPEEDBOR SPADE BIT SETS
|
Piece Count |
Length |
Shank Size |
||
SPEEDBOR® 8-Piece Spade Drill Bit Set in CaseIWAX128PC Includes: 3/8", 1/2", 5/8", 7/8", 1", 1-1/8", 1-1/2" |
8 |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® 5-Piece Spade Drill Bit Set88885 Includes: 3/8", 1/2", 5/8", 3/4", 1" |
5 |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® 4-Piece Short Spade Drill Bit Set87954 Includes: 5/8", 3/4", 1", 1-1/2" |
4 |
6" |
1/4" Hex Quick Change |
SPEEDBOR UTILITY BIT SETS
|
Piece Count |
Length |
Shank Size |
||
SPEEDBOR® MAX 6-Piece Tri-Flute Drill Bit Set in CaseIWAX236PC Includes: 1/2", 5/8", 3/4", 7/8", 1", 1-1/8" |
6 |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® MAX 6-Piece Short Tri-Flute Drill Bit Set in Case1877239 Includes: 1/2", 5/8", 3/4", 7/8", 1", 1-1/8" |
6 |
6" |
1/4" Hex Quick Change |
|
SPEEDBOR® MAX 3-Piece Tri-Flute Drill Bit Set3041003 Includes: 5/8", 3/4", 1" |
3 |
6" |
1/4" Hex Quick Change |
SPEEDBOR UTILITY BITS
SPEEDBOR® 1/2-in Woodboring Tri-Flute Utility Bit
3041001
|
Diameter |
Length |
1/2" |
6" |
|
Flute Length |
Shank Size |
1-3/4" |
1/4" Hex Quick Change |
SPEEDBOR® Max 3/4-in Woodboring Tri-Flute Utility Bit
3041002
|
Diameter |
Length |
3/4" |
6" |
|
Flute Length |
Shank Size |
2-3/8" |
1/4" Hex Quick Change |
SPEEDBOR® Max 5/8-in Woodboring Tri-Flute Utility Bit
3041004
|
Diameter |
Length |
5/8" |
6" |
|
Flute Length |
Shank Size |
2-1/16" |
1/4" Hex Quick Change |
SPEEDBOR® 7/8-in Woodboring Tri-Flute Utility Bit
3041005
|
Diameter |
Length |
7/8" |
6" |
|
Flute Length |
Shank Size |
2-5/8" |
1/4" Hex Quick Change |
SPEEDBOR® Max 1-in Woodboring Utility Bit
3041007
|
Diameter |
Length |
1" |
6" |
|
Flute Length |
Shank Size |
2-7/8" |
1/4" Hex Quick Change |
SPEEDBOR® Max 1-1/4-in Woodboring Utility Bit
3041009
|
Diameter |
Length |
1-1/4" |
6" |
|
Flute Length |
Shank Size |
2-3/4" |
1/4" Hex Quick Change |
SPEEDBOR® Max 1/2-in Woodboring Utility Bit
1866058
|
Diameter |
Length |
1/2" |
16" |
|
Flute Length |
Shank Size |
1-3/4" |
3/8" Hex |
SPEEDBOR® Max 5/8-in Woodboring Utility Bit
1866059
|
Diameter |
Length |
5/8" |
16" |
|
Flute Length |
Shank Size |
2-1/16" |
3/8" Hex |
SPEEDBOR® Max 3/4-in Woodboring Utility Bit
1866060
|
Diameter |
Length |
3/4" |
16" |
|
Flute Length |
Shank Size |
2-3/8" |
3/8" Hex |
SPEEDBOR SPADE BITS
SPEEDBOR® Standard Length 1/4-in Woodboring Spade Drill Bit
88804
|
Diameter |
Length |
1/4" |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® Standard Length 3/8-in Woodboring Spade Drill Bit
88806
|
Diameter |
Length |
3/8" |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® Standard Length 1/2-in Woodboring Spade Drill Bit
88808
|
Diameter |
Length |
1/2" |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® Standard Length 9/16-in Woodboring Spade Drill Bit
88809
|
Diameter |
Length |
9/16" |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® Standard Length 5/8-in Woodboring Spade Drill Bi
88810
|
Diameter |
Length |
5/8" |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® Standard Length 3/4-in Woodboring Spade Drill Bit
88812
|
Diameter |
Length |
3/4" |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® Standard Length 7/8-in Woodboring Spade Drill Bit
88814
|
Diameter |
Length |
7/8" |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® Standard Length 1-in Woodboring Spade Drill Bit
88816
|
Diameter |
Length |
1" |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® Standard Length 1-1/8-in Woodboring Spade Drill Bit
88818
|
Diameter |
Length |
1-1/8" |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® Standard Length 1-1/4-in Woodboring Spade Drill Bit
88820
|
Diameter |
Length |
1-1/4" |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® Standard Length 1-3/8-in Woodboring Spade Drill Bit
88822
|
Diameter |
Length |
1-3/8" |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® Extra Long 1/2-in Woodboring Spade Drill Bit
88708
|
Diameter |
Length |
1/2" |
16" |
|
Shank Size |
1/4" Hex |
SPEEDBOR® Extra Long 5/8-in Woodboring Spade Drill Bit
88710
|
Diameter |
Length |
5/8" |
16" |
|
Shank Size |
1/4" Hex |
SPEEDBOR® Extra Long 3/4-in Woodboring Spade Drill Bit
88712
|
Diameter |
Length |
3/4" |
16" |
|
Shank Size |
1/4" Hex |
SPEEDBOR® Extra Long 1-in Woodboring Spade Drill Bit
88716
|
Diameter |
Length |
1" |
16" |
|
Shank Size |
1/4" Hex |
SPEEDBOR® Extra Long 3/8-in Woodboring Spade Drill Bit
88706
|
Diameter |
Length |
3/8" |
16" |
|
Shank Size |
1/4" Hex |
SPEEDBOR® Standard Length 11/16-in Woodboring Spade Drill Bit
88811
|
Diameter |
Length |
11/16" |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® Standard Length 13/16-in Woodboring Spade Drill Bit
88813
|
Diameter |
Length |
13/16" |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® Standard Length 1-1/2-in Woodboring Spade Drill Bit
88824
|
Diameter |
Length |
1-1/2" |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR SPADE BIT SETS
SPEEDBOR® 8-Piece Spade Drill Bit Set in Case
IWAX128PC
Includes: 3/8", 1/2", 5/8", 7/8", 1", 1-1/8", 1-1/2"
|
Piece Count |
Length |
8 |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® 5-Piece Spade Drill Bit Set
88885
Includes: 3/8", 1/2", 5/8", 3/4", 1"
|
Piece Count |
Length |
5 |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® 4-Piece Short Spade Drill Bit Set
87954
Includes: 5/8", 3/4", 1", 1-1/2"
|
Piece Count |
Length |
4 |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR UTILITY BIT SETS
SPEEDBOR® MAX 6-Piece Tri-Flute Drill Bit Set in Case
IWAX236PC
Includes: 1/2", 5/8", 3/4", 7/8", 1", 1-1/8"
|
Piece Count |
Length |
6 |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® MAX 6-Piece Short Tri-Flute Drill Bit Set in Case
1877239
Includes: 1/2", 5/8", 3/4", 7/8", 1", 1-1/8"
|
Piece Count |
Length |
6 |
6" |
|
Shank Size |
1/4" Hex Quick Change |
SPEEDBOR® MAX 3-Piece Tri-Flute Drill Bit Set
3041003
Includes: 5/8", 3/4", 1"
|
Piece Count |
Length |
3 |
6" |
|
Shank Size |
1/4" Hex Quick Change |
